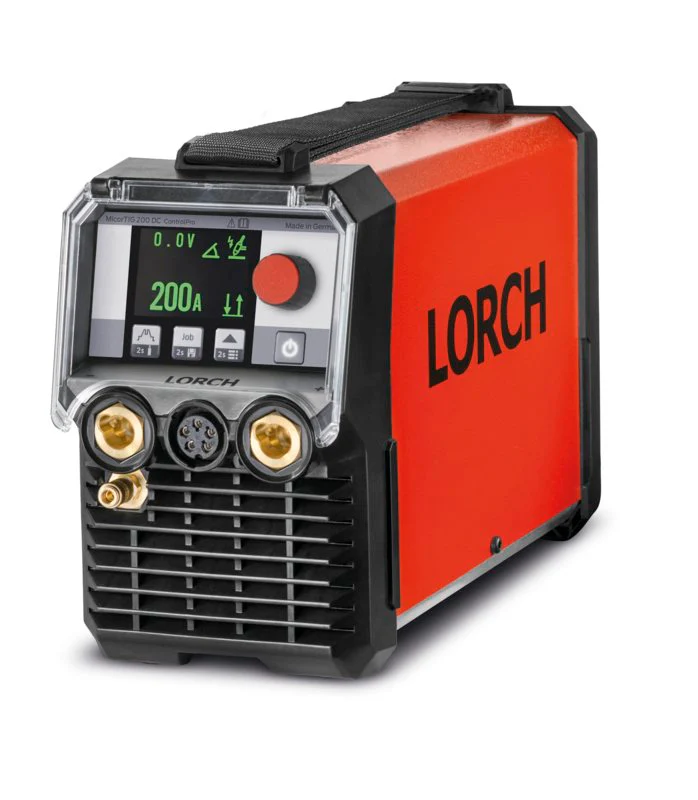

MicorTIG 200 DC BasicPlus VRD (Accu-ready)

TIG welding Welding range 1~ 115 V: [A] 5 - 180 Welding range 1~ 230 V: [A] 5 - 200 Voltage range: [V] 10.2 - 18 TIG Duty cycle DC 115 V 230 V Duty cycle DC 100% (40°c): [A] 140 130 Duty cycle DC 60% (40°c): [A] 160 160 Duty cycle DC at max. current (40°c): [%] 25 25 Electrode welding Welding range 115 V: [A] 10 - 140 Welding range 230 V: [A] 10 - 180 Voltage range: [V] 78 - 88 Weldable electrodes: [Ø in mm] 1.5 - 4 Electrode duty cycle Duty cycle 100% (40°c): [A] 120 Duty cycle 60%: [A] 140 Duty cycle at max. current (40°c): [%] 25 Process-independent data Open circuit voltage: [V] 18 - 20 Open circuit voltage VRD: [V] 18 - 20 Mains 115 V 230 V Mains voltage 1~ (50/60 Hz): [V] 115 230 Mains fuse 1~ (50/60 Hz): [A] 25 16 Positive mains tolerance 1~ (50/60 Hz): [%] 15 15 Negative mains tolerance 1~ (50/60 Hz): [%] 15 15 Mains plug Mains plug: Schuko Standards and approvals Protection class: IP23S Insulation class: F Norm/Standard: EN 60974-01 Designation/Certification: CE, S Cooling type Cooling type: Gas-cooled Dimensions length x width x height Dimensions (LxWxH) [mm] 360 × 130 × 215 Weights Weight: [kg] 6.8
