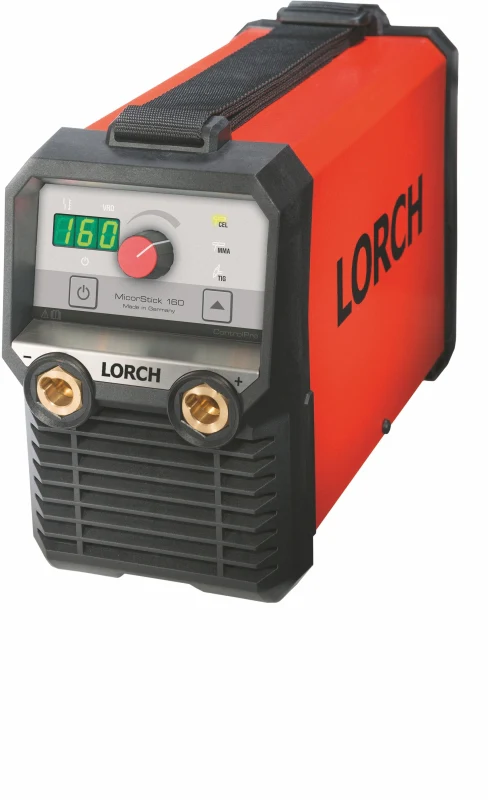

MicorStick 160 ControlPro (Accu-ready)

Electrode welding Welding range 230 V: [A] 10 - 160 Voltage range: [V] 20.4 - 26 Weldable electrodes: [Ø in mm] 1.5 - 4 Electrode duty cycle Duty cycle 100% (40°c): [A] 110 Duty cycle 60%: [A] 120 Duty cycle at max. current (40°c): [%] 30 TIG welding Welding range 1~ 230 V: [A] 15 - 160 Voltage range: [V] 10.6 - 16.4 TIG Duty cycle DC 230 V Duty cycle DC 100% (40°c): [A] 110 Duty cycle DC 60% (40°c): [A] 120 Duty cycle DC at max. current (40°c): [%] 30 Process-independent data Open circuit voltage: [V] 67 - 106 Open circuit voltage VRD: [V] 12 - 18 Mains 230 V Mains voltage 1~ (50/60 Hz): [V] 230 Mains fuse 1~ (50/60 Hz): [A] 16 Positive mains tolerance 1~ (50/60 Hz): [%] 15 Negative mains tolerance 1~ (50/60 Hz): [%] 15 Mains plug Mains plug: Schuko Standards and approvals Protection class: IP23S Insulation class: F Norm/Standard: EN 60974-01 Designation/Certification: CE, S Cooling type Cooling type: Gas-cooled Dimensions length x width x height Dimensions (LxWxH) [mm] 360 × 130 × 215 Weights Weight: [kg] 4.9
