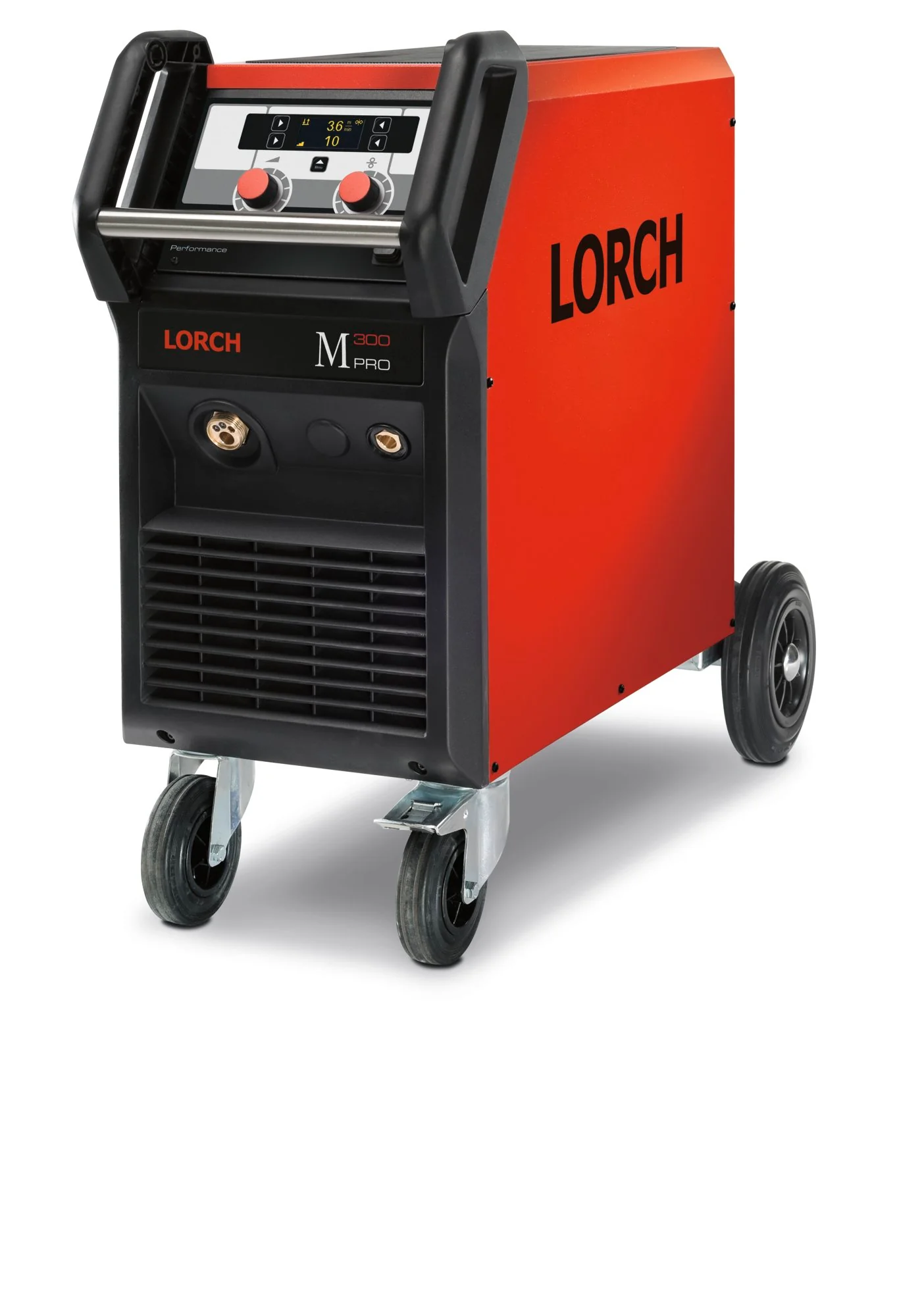

M-Pro 300 Performance

MIG-MAG welding Welding range 3~ 400 V: [A] 30 - 300 Voltage range: [V] 15.5 - 29 Weldable Wires Steel: [Ø in mm] 0.6 - 1.2 Weldable wires Stainless steel: [Ø in mm] 0.8 - 1.2 Weldable wires aluminum: [Ø in mm] 1 - 1.2 Voltage setting Voltage setting: 12/21 passi MIG-MAG duty cycle Duty cycle 100% (40°c): [A] 170 Duty cycle 60% (40°c): [A] 205 Duty cycle at max. current (40°c): [%] 25 Process-independent data Open circuit voltage: [V] 15 - 53 Mains 400 V Mains voltage 3~ (50/60 Hz): [V] 400 Mains fuse 3~ (50/60 Hz): [A] 16 Positive mains tolerance 3~ (50/60 Hz): [%] 15 Negative mains tolerance 3~ (50/60 Hz): [%] 15 Mains plug Mains plug: CEE 16 Standards and approvals Protection class: IP23S Insulation class: F Norm/Standard: EN 60974-01 Designation/Certification: CE, S Cooling type Cooling type: Gas-cooled Dimensions length x width x height Dimensions (LxWxH) [mm] 880 × 400 × 755 Weights Weight: [kg] 80
