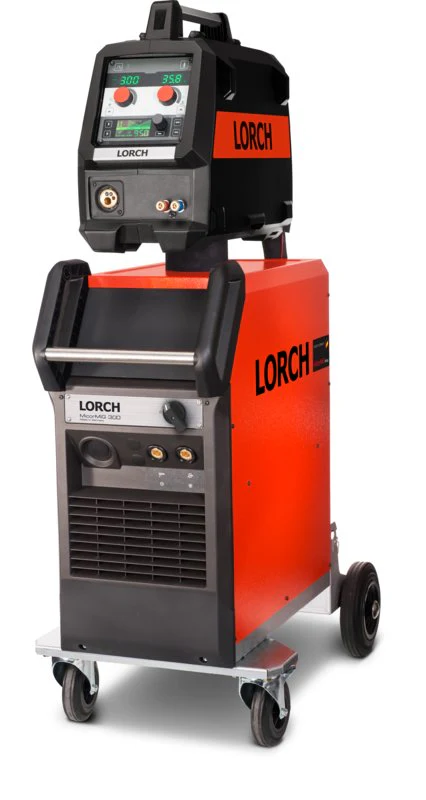

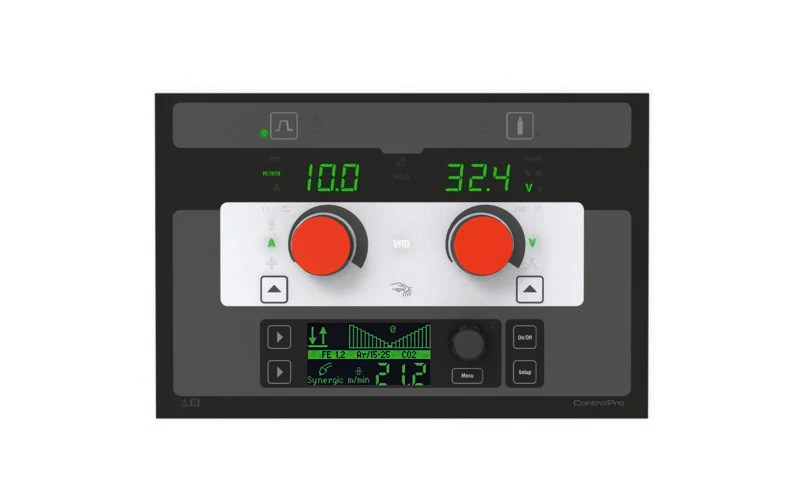

MicorMIG Pulse 300 ControlPro - compact system, gas-cooled

MIG-MAG welding Welding range 3~ 400 V: [A] 25 - 300 Voltage range: [V] 15.3 - 29 Weldable Wires Steel: [Ø in mm] 0.6 - 1.2 Weldable wires Stainless steel: [Ø in mm] 0.8 - 1 Weldable wires aluminum: [Ø in mm] 1 - 1.2 Weldable wires CuSi: [Ø in mm] 0.8 - 1 Voltage setting Voltage setting: Continuo MIG-MAG duty cycle Duty cycle 100% (40°c): [A] 200 Duty cycle 60% (40°c): [A] 250 Duty cycle at max. current (40°c): [%] 45 TIG welding Welding range 3~ 400 V: [A] 10 - 300 Voltage range: [V] 10.4 - 22 TIG Duty cycle DC 400 V Duty cycle DC 100% (40°c): [A] 220 Duty cycle DC 60% (40°c): [A] 270 Duty cycle DC at max. current (40°c): [%] 50 Electrode welding Welding range 400 V: [A] 10 - 300 Voltage range: [V] 20.4 - 32 Weldable electrodes: [Ø in mm] 1.5 - 8 Electrode duty cycle Duty cycle 100% (40°c): [A] 200 Duty cycle 60%: [A] 250 Duty cycle at max. current (40°c): [%] 45 Process-independent data Open circuit voltage: [V] 76 - 83 Feed speed standard: [m/min] 1 - 25 Mains 400 V Mains voltage 3~ (50/60 Hz): [V] 400 Mains fuse 3~ (50/60 Hz): [A] 32 Positive mains tolerance 3~ (50/60 Hz): [%] 15 Negative mains tolerance 3~ (50/60 Hz): [%] 15 Mains plug Mains plug: CEE 32 Standards and approvals Protection class: IP23S Insulation class: F Norm/Standard: EN 60974-01 Designation/Certification: CE, S Cooling type Cooling type: Gas-cooled , Water-cooled Cooling Standard cooling capacity (l/min): [kW] 1.06 Tank capacity: [l] 4.3 Dimensions length x width x height Dimensions (LxWxH) [mm] 880 × 490 × 885 Dimensions wire feed case (LxWxH) [mm] 575 × 245 × 434 Weights Weight: [kg] 58 Weight wire feeder case: [kg] 10.6 Weight, water cooling (filled): [kg] 13
